LYNCCN BCY55.88 V16 Press Brake Tooling Single V Die

Name: LYNCCN BCY5588 V16 Press Brake Tooling Single V Die
Brand: LYNCCN
Price: 1 USD

Brand Name : LYNCCN

Model Number : BCY55.88

Certification : ISO9001

Place of Origin : Anhui, China

MOQ : 500mm*3pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 500 Piece/Pieces per month

Delivery Time : Negotiation

Packaging Details : Wooden box

Product Name : LYNCCN BCY55.88 V16 Press Brake Tooling Single V Die

Heat Treatment : Induction Hardening

Angle : 88°

V-opening : V16

Hardness : HRC53±2

Max. Load : 100T/M

Material : 42CrMo

Height : 75mm

Width : 30mm

Packing : Wooden Box

Contact Now

Product Description:

A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.

This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.

Technical Parameters:

Product Type	Press Brake Single V Die
V-opening	V16
Angle	88°
Width	30mm
Height	75mm
Material	42CrMo
Length	550mm/500mm
Hardness	HRC53±2
Heat Treatment	Induction Hardening
Max. Load	100T/M
Packing	Wooden Box

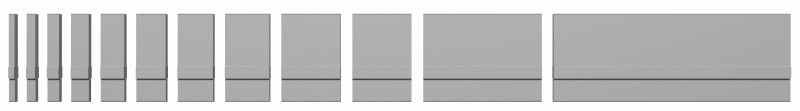

Standard Segmentation:

500mm

1000mm

LYNCCN BCY55.88 V16 Press Brake Tooling Single V Die

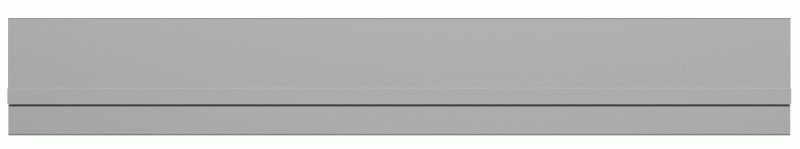

1100mm Segmentation

LYNCCN BCY55.88 V16 Press Brake Tooling Single V Die

Applications:

Our hydraulic CNC press brake punches are suitable for a variety of application occasions and scenarios. They are commonly used in metalworking and fabrication industries for bending and shaping metal sheets. Our products are compatible with a range of press brake machines and are widely used in industries such as aerospace, automotive, construction, and shipbuilding.
